Migrate from Vivado xsim to GHDL: six lines in a 34-line testbench stop the first ghdl -a run
FPGA verification engineers moving VHDL testbenches from AMD Vivado's xsim to GHDL: one 34-line UART testbench that ran clean in xsim produced 6 findings in GHDL Migration Check — 3 errors and 3 warnings — before GHDL ever saw it.
Why teams move the testbench, not the synthesis
Vivado ML Standard and its simulator are free, but larger devices need Vivado ML Enterprise, and Mouser lists a node-locked Enterprise seat (EF-VIVADO-ENTER-NL) at $5,063.25 (checked 2026-09-29). GHDL is free under GPL-2.0 and installs in seconds on a CI runner. So a common split is one Vivado seat for synthesis and GHDL for every testbench run.
The catch: xsim and GHDL do not accept the same VHDL by default.
The six lines
The sample file is tb_uart_rx.vhd. Here is what the check reported, with the fix for each line:

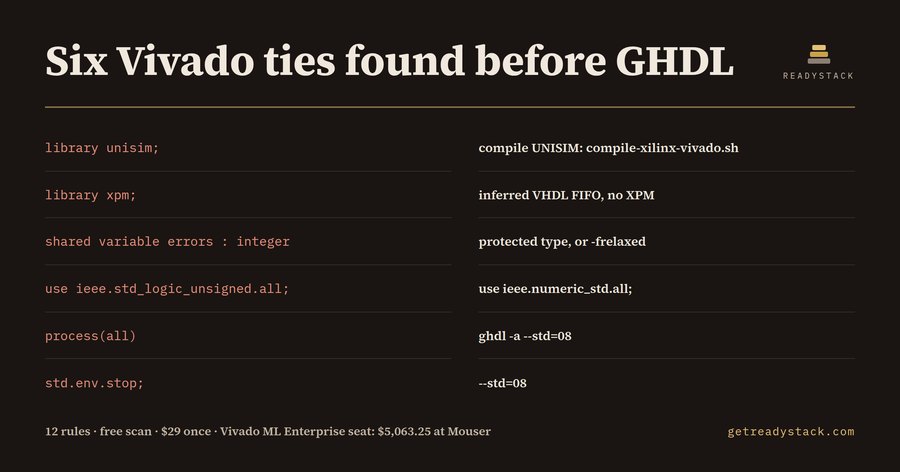

| Vivado xsim line | GHDL fix |
|---|---|
| library unisim; | compile UNISIM with compile-xilinx-vivado.sh |
| library xpm; | inferred VHDL FIFO, no XPM |
| shared variable errors : integer | protected type, or -frelaxed |
| use ieee.std_logic_unsigned.all; | use ieee.numeric_std.all; |
| process(all) | ghdl -a --std=08 |
| std.env.stop; | --std=08 |
Three of them are errors, because a flag alone will not fix them:
- library unisim — Xilinx primitives ship with Vivado. GHDL has a vendor script, compile-xilinx-vivado.sh, that compiles them from your Vivado install; after that you pass -P with the output directory.
- library xpm — XPM macros are SystemVerilog. The VHDL package only declares the components. GHDL simulates VHDL, so an XPM FIFO has no model; swap in an inferred FIFO or a behavioural model for simulation.
- shared variable errors : integer — legal in VHDL-93. But this file uses process(all) and std.env, so it needs --std=08, and under 2008 GHDL stops: a shared variable must be of a protected type. Wrap it, or pass -frelaxed to turn the error into a warning.
The other three are warnings: they need a flag. GHDL's default standard is 93c, so process(all) and std.env.stop fail until every ghdl -a, -e and -r call gets --std=08. std_logic_unsigned is a Synopsys package; GHDL takes it with -fsynopsys, and the cleaner fix is numeric_std.
Why not just run GHDL
GHDL stops at the first analysis error in a file. You fix library unisim, run again, meet process(all), run again, meet the shared variable. A chatbot will suggest flags from memory but cannot see your file. The check lists every line in one pass and prints the command the file needs — here ghdl -a --std=08 -fsynopsys.
What it covers
12 rules: UNISIM, UNIMACRO, SECUREIP and XPM libraries; Synopsys std_logic_arith, std_logic_unsigned and std_logic_signed; five VHDL-2008 features (process(all), matching operators such as ?=, std.env, context references, to_string and to_hstring); plain shared variables in files that need 2008; and IEEE 1735 protected envelopes that GHDL cannot decrypt.
If the file already records its flags in a comment, such as -- ghdl -a --std=08 -fsynopsys, the rules those flags cover stay quiet, so the list shrinks to what is really left.
