Arduino code temperature sensor — food-safety cooling & fridge check

Most Arduino code for a temperature sensor ends the same way: a number scrolls past in the Serial Monitor, and the tutorial is over. It is not fine for a fridge full of stock, a soup kettle on a food truck, or a pan of chili cooling on a Friday night. In a kitchen the question is never "what is the temperature right now". It is "was it ever out of limit, for how long, and can I prove when".

Here are the limits this pack is built around. Under the US FDA Food Code, cold-held food must stay at 41°F (5°C) or below and hot-held food at 135°F (57°C) or above. Section 3-501.14 adds a two-stage cooling rule: cooked food must fall from 135°F to 70°F within 2 hours, and to 41°F or below within 6 hours total. In England, Wales and Northern Ireland the chill limit is 8°C and the hot-holding limit is 63°C, with a single tolerance period of up to 4 hours above 8°C and up to 2 hours below 63°C.

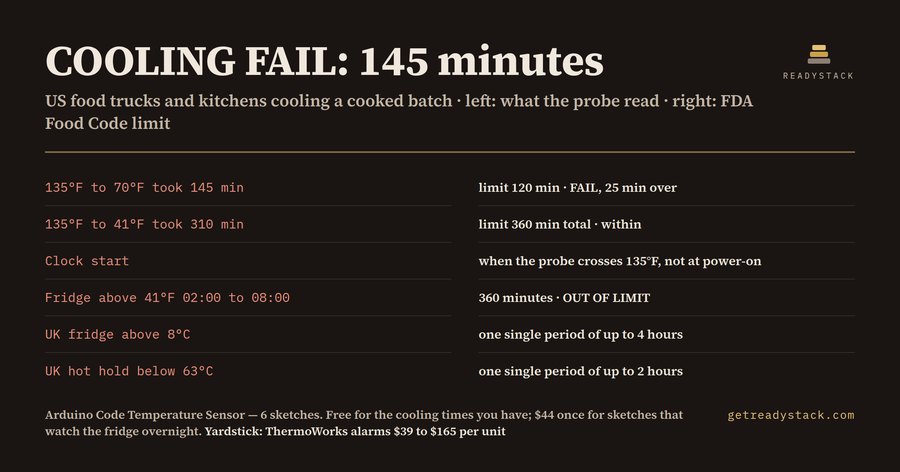

Take a real-looking evening. A 4-inch hotel pan of chili reads 135°F at 14:00 and 70°F at 16:25. That is 145 minutes for stage one against a limit of 120, so the batch fails by 25 minutes even though it reaches 41°F at 19:10, 310 minutes in and inside the 360-minute total. The free checker on the product page gives exactly that answer when you type those three times.

So the sketches do the watching. CoolingTwoStageLog starts its clock when the probe crosses 135°F, not when you plug the board in, so a pan that sat on the stove gets no free minutes. It prints one CSV line per minute, warns when 75% of a stage is used so there is still time for an ice bath or shallower pans, and latches COOLING PASS or COOLING FAIL. If the probe comes unplugged halfway, the result is FAIL with the reason, never a silent pass.

ColdHoldAlarm is for the fridge you worry about. Its alarm latches. If the compressor struggled at 3 a.m. and the fridge recovered by 6 a.m., the LED and buzzer are still on when you open up, and the log shows how many excursions there were, the longest one in minutes and the highest temperature. A reset is refused while the fridge is still above the limit. In UK mode it prints the moment the 4-hour single-period tolerance is exceeded. HotHoldAlarm does the same for a bain-marie at 135°F or 63°C, with a refill grace period and hysteresis so it does not chatter at the line.

WalkInDoorAjarAlarm pairs a reed switch with one probe: a debounced door, an alarm after 5 minutes open, and a temperature alarm that stays on after the door is shut. TwoProbeTempLogger writes a CSV line every 15 minutes for a fridge and a freezer, keeping the minimum and maximum between lines, so a spike between two log points is not lost. IceBathCalibration runs first: it waits for a reading that holds within 0.2°C for 30 seconds in ice water, compares the error with the Food Code accuracy of 1°C (2°F), refuses an offset over 2°C because that means a wrong beta or wiring, and prints the CAL_OFFSET_C line to paste into the other five.

Everything runs on an Arduino Uno with a 10k NTC probe, a 10k resistor and a buzzer. There are no libraries to install: all six sketches use only the built-in core and all six compiled with arduino-cli for arduino:avr:uno before this was published. Every number you might change is a named constant at the top of the file, and one line switches between the US and UK rules.

Start with the free checker. Type your own three times, or paste last night's readings. If the answer surprises you, that is the moment a sensor that samples every 2 seconds earns its place.
